Resistors are fundamental components in electronic circuits, and understanding their values is crucial for designing and troubleshooting circuits. The color code system is commonly used to represent the resistance value of a resistor. In this blog, we will delve into the intricacies of resistor values, explore the significance of different colors, and discuss various types of resistors.
Brown, Green, Brown, Gold – Deciphering the Color Code
The color bands on a resistor indicate its resistance value, tolerance, and sometimes the temperature coefficient. Let's take the example of a resistor with the color bands Brown, Green, Brown, and Gold. Each color corresponds to a digit or multiplier according to the standard color code chart.
In this case, Brown represents 1, Green represents 5, and Brown represents 1. The Gold band indicates the tolerance, which is +/- 5%. By combining these values, we get 15 x 10^1 ohms with a tolerance of +/- 5%. Therefore, the resistance value of this resistor is 150 ohms with a tolerance of +/- 5%.
Understanding the 4-Band Resistor Chart
The 4-band resistor chart is a widely used method for determining the resistance value of a resistor. The first two bands represent the significant digits, the third band represents the multiplier, and the fourth band represents the tolerance. By interpreting the color bands, one can easily identify the resistance value and tolerance of a resistor.
For instance, a Black resistor followed by three additional bands would indicate a resistance value of 0 ohms with a tolerance of +/- 20%. This is a special case where the resistance value is zero, and the tolerance is represented by the fourth band.
Exploring Chip Resistors - Surface Mount Technology

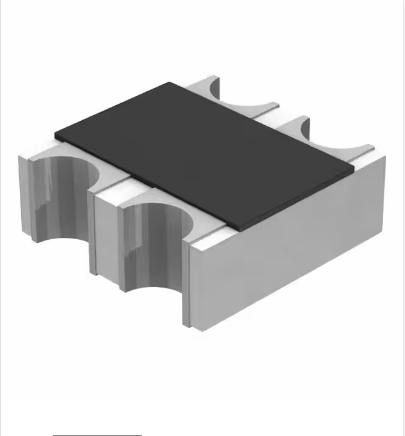

Chip resistors, also known as surface mount resistors, are compact and widely used in modern electronic devices. They are designed for surface mount technology (SMT) and offer advantages such as space efficiency, high reliability, and ease of automated assembly. Chip resistors come in various sizes and power ratings, making them suitable for a wide range of applications.
Chip resistors are available in different resistance values, including the popular 1 ohm resistor. These resistors play a crucial role in current sensing, voltage division, and signal conditioning in electronic circuits.
Apart from the color code and chip resistors, there are various types of resistors such as carbon film, metal film, wirewound, and more. Each type has its unique characteristics and is suitable for specific applications based on factors like power rating, tolerance, and stability.
For instance, wirewound resistors are known for their high power handling capabilities and precision, making them suitable for high-power applications and precision instruments. On the other hand, carbon film resistors are cost-effective and widely used in general electronic circuits.
In conclusion, understanding resistor values is essential for anyone working with electronic circuits. The color code system provides a simple and effective way to determine the resistance value of a resistor. Additionally, the diverse types of resistors cater to a wide range of applications, offering flexibility and reliability in electronic designs. By mastering the intricacies of resistor values and types, engineers and hobbyists can effectively design and troubleshoot electronic circuits with confidence.
